High Quality Fiber Optic Cable Single Mode FC-LC , Duplex ( SM DX )

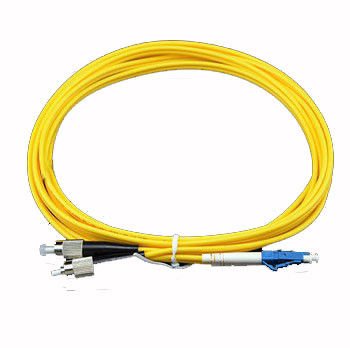

Large Image : High Quality Fiber Optic Cable Single Mode FC-LC , Duplex ( SM DX )

Product Details:

Place of Origin:	Shenzhen , China
Certification:	CE,RoHS,FCC,CPR,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:
Packaging Details:	PE bag
Delivery Time:	3-15 days
Payment Terms:	L/C,T/T,Western Union payments for offline orders.
Supply Ability:	1 million connector / month

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Patch Cord	Type:	Singlemode Or Multimode
Ferrule End-face:	PC, UPC, APC	Cable Diameter:	3.0mm, 2.0mm, 0.9mm
Cable Length:	1, 2, 3 Meter Or Customized	Cable Type:	PVC, LSZH, OM3, OFNR, OFNP
High Light:	fiber patch cord, sc fiber patch cord

High Quality Fiber Optic Cable Single Mode FC-LC , Duplex ( SM DX )

Specifications

FC-LC Single mode, Duplex, 3meters, telecom class, high quality Fiber Optic Patch Cord
FC/UPC-LC/UPC-SM-DX-3.0mm-3M, YOFC fiber

Features:
      1. Complying with IEC, YD-T826/1996, NTT, YD/T826&YD/T895&YD/T896 standard.
      2. Low insertion loss, high return loss
      3. Excellent mechanical endurance
      4. High credibility and stability
      5. Good in repeatability and exchangeability

Application:

FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
Video transmission , Data transmission
Active Device Termination
Premise Installations
Telecommunication and Data processing Networks
Industrial, medical & military
Systems Integration for Long Haul, Metro and Access Network

Specifications:

Parameter

Unit

FC, SC, LC

ST, MU,MTRJ

MPO

E2000

UPC

APC

UPC

APC

Insertion loss(typical)

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.35

≤0.3

Return loss

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

1310, 1510

Exchangeability

≤0.2

Vibration

≤0.2

Operating temperature

°C

-40~75

Storage temperature

°C

-45~85

Cable diameter

3.0, 2.0, 0.9

Ordering Information:
FC/ UPC–FC/ UPC-SM- DX-3.0–2M
12123456
1.Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2.Ferrule End-face: PC, UPC, APC
3.Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4.Cable Quantity: “DX” means Duplex / “SX” means Simplex
5.Cable Diameter: 3.0mm, 2.0mm, 0.9mm
6.Cable Length: 1, 2, 3 meter or customized
7.Cable type: PVC, LSZH, OM3, OFNR, OFNP
