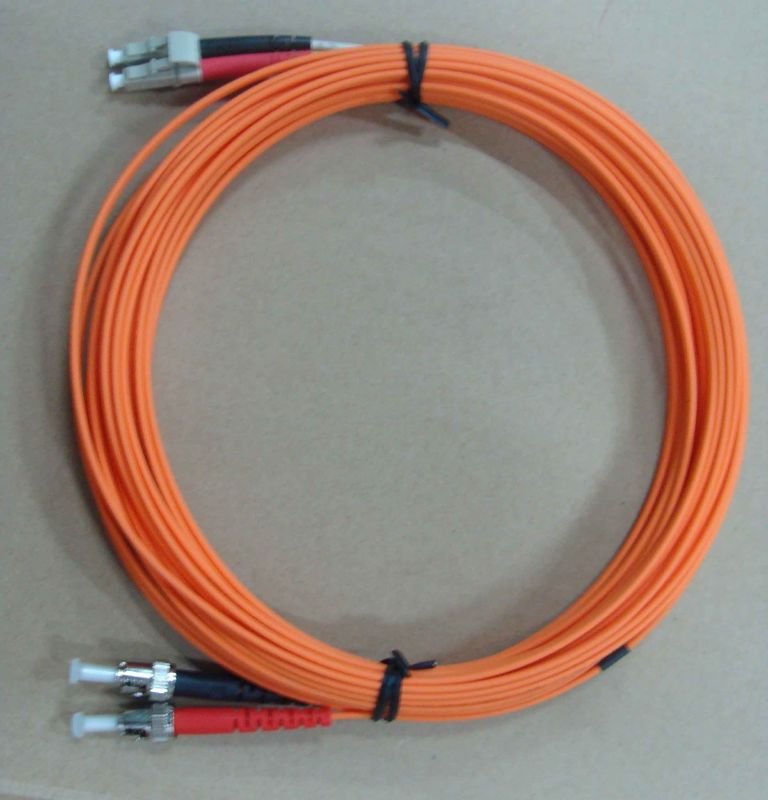

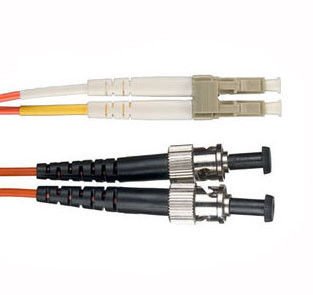

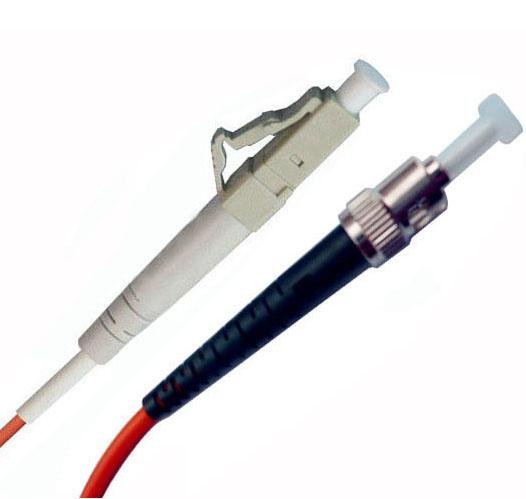

Multimode Fiber Optic Patch Cord LC / UPC-ST / UPC PVC Or LSZH

Multimode Fiber Optic Patch Cord LC / UPC-ST / UPC PVC Or LSZH

Large Image :  Multimode Fiber Optic Patch Cord LC / UPC-ST / UPC PVC Or LSZH

Product Details:

Place of Origin: Shenzhen , China
Certification: CE,RoHS,FCC,CPR,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 20 pcs
Price:
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Contact Now
Detailed Product Description
Detailed Product Description
Model: Multimode Color: Orange
Length: 1,2,3...60 Mtrs
High Light: fiber patch cord, st patch cord





Multimode Fiber Optic Patch Cord LC / UPC-ST / UPC PVC Or LSZH





Application:

  1. Fiber-optic testing system
  2. Network communication
  3. LAN, CATV
  4. Fiber-optic data transmission



Features:



  1. Low insertion loss, high return loss, high reliability
  2. Good repeatability, interchangeability
  3. Any diameter of fiber can be chose, 0.9, 2, 3mm ,10g fiber, low smoke and zero halogen can be chosen



Material of patch cord:

  1. Dust caps: LDPE, transparent (RoHS)
  2. Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
  3. Inner frame: PBT, white (RoHS)
  4. Ferrule: zirconium oxide ceramic material, white (RoHS)
  5. Ferrule’s handle: copper (C3602), nickelage (RoHS)
  6. Mechanical spring: stainless steel (RoHS)
  7. Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
  8. Snap ring: aluminium alloy 6063 (RoHS)
  9. Ring: copper alloy (HPD62), nickelage (RoHS)
  10. Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
  11. Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNP

Specification:



Item Unit FC,SC,LC ST,MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC UPC PC PC PC UPC PC PC UPC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Exchengeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable Diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9



Order information:

  • For example:LC/UPC-ST/UPC-SM-SX-2.0-5M-LSZH  patch cord
  • Type: SX/DX optional
  • Ferrule type: APC/PC
  • Diameter: 0.9, 2.0, 3.0mm
  • Length: 1, 2, 3 to 120m
  • Fiber: SM/OM1/OM2/OM3/OM4
  • Material of jacket: PVC/LSZH/OFNP













Tag:sc fiber patch cord,fiber patch cord,st patch cord
