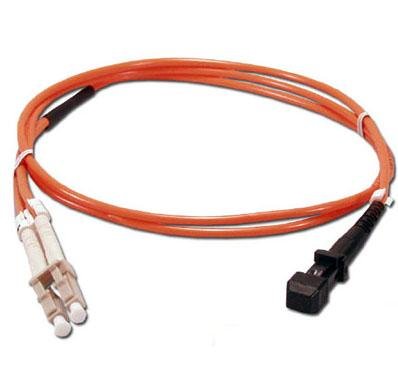

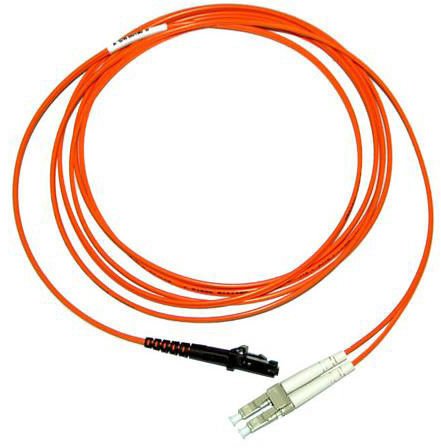

Customized MTRJ-LC Duplex Hybrid Fiber Optic Patch Cord MM 50/125um

Large Image : Customized MTRJ-LC Duplex Hybrid Fiber Optic Patch Cord MM 50/125um

Product Details:

Place of Origin:	Shenzhen , China
Certification:	CE,RoHS,FCC,CPR,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:
Packaging Details:	PE bag
Delivery Time:	3-15 days
Payment Terms:	L/C,T/T,Western Union payments for offline orders.
Supply Ability:	1 million connector / month

Contact Now

Detailed Product Description

Cable Jacket:	PVC	Color:	Orange
Length:	Can Be Customized	Insertion Loss:	<>
High Light:	fiber patch cord, sc fiber patch cord

MTRJ-LCduplex Hybrid Fiber Optic Patch Cord,MM 50/125um,orange PVC out jacket cable

♦Features:

In-line with Telcordia GR-326-CORE standard
Low insertion loss, high return loss, high reliability
Good repeatability, interchangeability
Any diameter of fiber can be chose, 0.9mm, 2mm, 3mm ,10g fiber, low smoke and zero halogen can be chosen

♦Technical Parameter :

Parameter	Unit	FC, SC, LC/ Armoured fiber patch cord	ST, MU	MT-RJ, MPO	E2000
SM	MM	SM	MM	SM	MM	SM
PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC	PC	APC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35	≥55	≥75
Operating wavelength	nm	1310, 1510	1310, 1510	1310, 1510	1310, 1510
Exchangeability	dB	≤0.2	≤0.2	≤0.2	≤0.2
Vibration	dB	≤0.2	≤0.2	≤0.2	≤0.2
Operating temperature	°C	-40~75	-40~75	-40~75	-40~75
Storage temperature	°C	-45~85	-45~85	-45~85	-45~85
Cable diameter	mm	Φ3.0, Φ2.0, Φ0.9	Φ3.0, Φ2.0, Φ0.9	Φ3.0, Φ2.0, Φ0.9	φ3.0, φ2.0, φ0.9

Parameter

Unit

FC, SC, LC/ Armoured fiber patch cord

ST, MU

MT-RJ, MPO

E2000

UPC

APC

UPC

APC

Insertion loss(typical)

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

Return loss

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

1310, 1510

Exchangeability

≤0.2

Vibration

≤0.2

Operating temperature

°C

-40~75

Storage temperature

°C

-45~85

Cable diameter

Φ3.0, Φ2.0, Φ0.9

φ3.0, φ2.0, φ0.9

♦Application:

♦Gigabit Ethernet
♦Active device termination
♦Telecommunication networks
♦Video
♦Multimedia
♦Premise installations
♦Local area networks
♦FTTH and FTTX applications
♦CATV
♦Order information:

♦Type: SX/DX optional
♦Ferrule end face: APC/UPC/PC
♦Diameter: 0.9, 2.0, 3.0mm
♦Length:1m, 2m, 3m to 120m
♦Fiber: SM/OM1/OM2/OM3/OM4
♦Material of jacket: PVC/LSZH/OFNR
