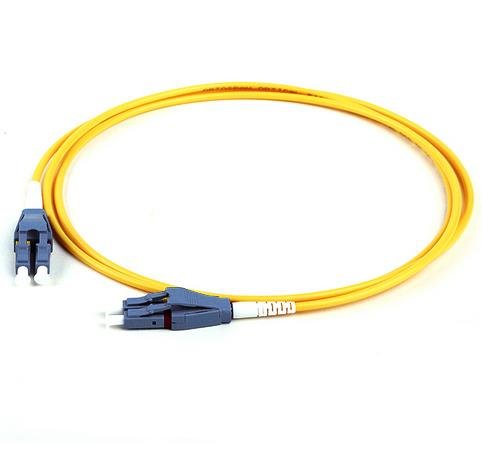

Multimode Patch Cord SM Uniboot Duplex Fiber Optic Jumper Yellow

Large Image : Multimode Patch Cord SM Uniboot Duplex Fiber Optic Jumper Yellow

Product Details:

Place of Origin:	Shenzhen , China
Certification:	CE,RoHS,FCC,CPR,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:
Packaging Details:	PE bag
Delivery Time:	3-15 days
Payment Terms:	L/C,T/T,Western Union payments for offline orders.
Supply Ability:	1 million connector / month

Contact Now

Detailed Product Description

Structure:	DX Uniboot	Cable Color:	Yellow
Out Jacket:	PVC	Length:	3M
High Light:	fiber patch cord, sc fiber patch cord

LC/UPC to LC/UPC SM uniboot duplex fiber optic jumper,3.0mm,3Mtrs,PVC out jacket

♦Application:

Testing equipment
FTTX+LAN
Optical fiber CATV optical communication system
Telecommunication

♦Features:

Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability

♦Specifications :

Parameter	Unit	FC, SC, LC/ Armoured fiber patch cord	ST, MU	MT-RJ, MPO	E2000
SM	MM	SM	MM	SM	MM	SM
PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC	PC	APC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35	≥55	≥75
Operating wavelength	nm	1310, 1510	1310, 1510	1310, 1510	1310, 1510
Exchangeability	dB	≤0.2	≤0.2	≤0.2	≤0.2
Vibration	dB	≤0.2	≤0.2	≤0.2	≤0.2
Operating temperature	°C	-40~75	-40~75	-40~75	-40~75
Storage temperature	°C	-45~85	-45~85	-45~85	-45~85
Cable diameter	mm	Φ3.0, Φ2.0, Φ0.9	Φ3.0, Φ2.0, Φ0.9	Φ3.0, Φ2.0, Φ0.9	φ3.0, φ2.0, φ0.9

Parameter

Unit

FC, SC, LC/ Armoured fiber patch cord

ST, MU

MT-RJ, MPO

E2000

UPC

APC

UPC

APC

Insertion loss(typical)

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

Return loss

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

1310, 1510

Exchangeability

≤0.2

Vibration

≤0.2

Operating temperature

°C

-40~75

Storage temperature

°C

-45~85

Cable diameter

Φ3.0, Φ2.0, Φ0.9

φ3.0, φ2.0, φ0.9

♦Order information:

♦Type: SX/DX optional
♦Ferrule end face: APC/UPC/PC
♦Diameter: 0.9, 2.0, 3.0mm
♦Length:1m, 2m, 3m to 120m
♦Fiber: SM/OM1/OM2/OM3/OM4
♦Material of jacket: PVC/LSZH/OFNR
