Product Details:
Payment & Shipping Terms:
|
| Connector: | SC | Structure: | Duplex |
|---|---|---|---|
| Cable Color: | Purple | Length: | Can Be Customized |
| High Light: | fiber patch cord, sc fiber patch cord | ||

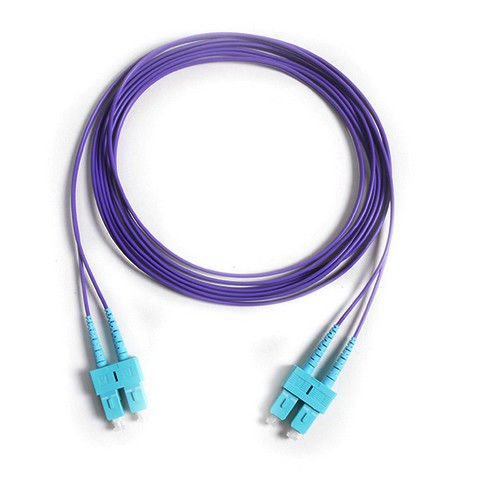

Chinese supplier Corning fiber SC/PC-SC/PC OM4 Duplex purple color optical fiber patch cord
►Technical Parameter:
| Parameter | Unit | SC | |
| OM4 | |||
| UPC | APC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥50 | ≥60 |
| Operating wavelength | nm | 1310, 1490,1550 | |
| Exchangeability | dB | ≤0.2 | |
| Vibration | dB | ≤0.2 | |
| Operating temperature | ℃ | -25~75 | |
| Storage temperature | ℃ | -45~85 | |
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | |
Application:
--FTTX+LAN, Optical fiber CATV
--Fiber-optic communication system
--Fiber-optic data transmission
--Fiber-optic testing system
Order information:
--For example:SC/UPC-SC/UPC-OM4-DX-2.0-5M-LSZH patch cord
--Type: SX/DX optional
--Ferrule type: APC/PC
--Diameter: 0.9, 2.0, 3.0mm
--Length: 1, 2, 3 to 120m
--Fiber: SM/OM1/OM2/OM3/OM4
--Material of jacket: PVC/LSZH/OFNP
