900um orange color High return loss, low insterion loss LC / PC - MM Fiber Optic Patch Cord

Detailed Product Description

Beige Cable Diameter: 900um Length:	3M Or As Customer Requirement	Cable Color::	Orange
Cable Diameter::	900um	Sheath Material::	LSZH
High Light:	fiber patch cord, sc fiber patch cord

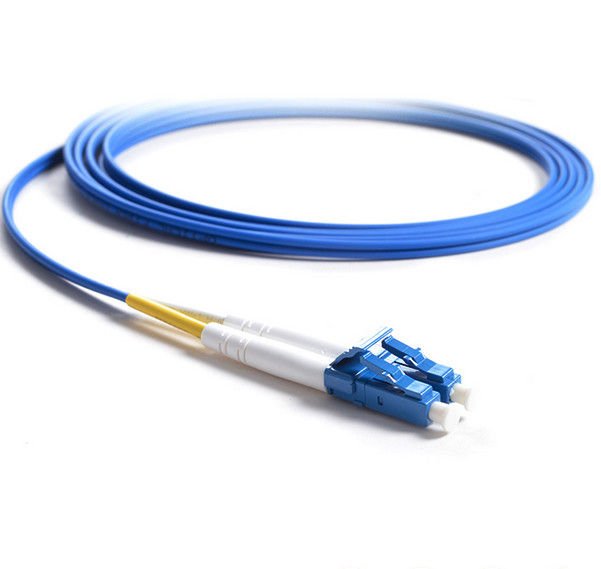

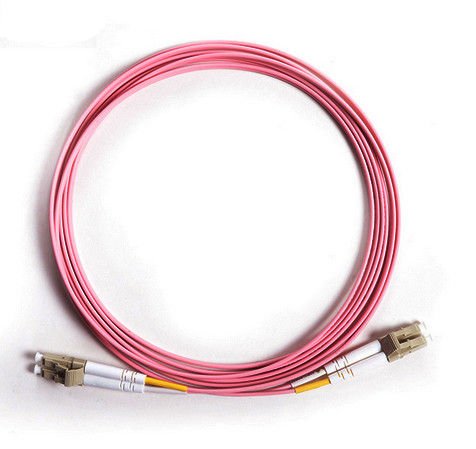

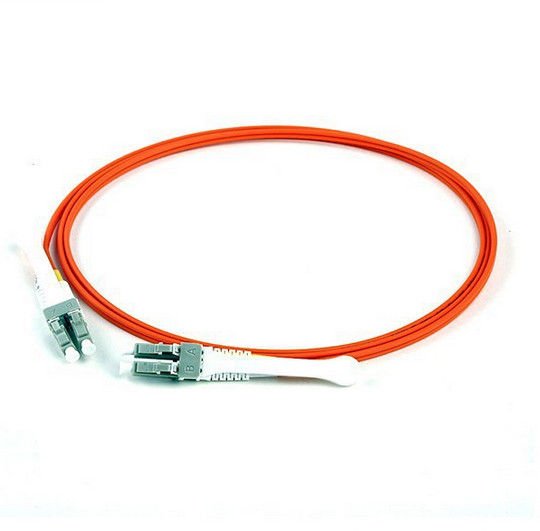

High return loss, low insterion loss LC / PC - MM Fiber Optic Patch Cord

LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the ST.

Features:

High return loss
Low insterion loss
Telcordia style boots
Compiance with TIA/IEA, IEC, Rohs



Application:

1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen2,Video transmission , Data transmission3,Active Device Termination4,Premise Installations5,Telecommunication and Data processing Networks6, Industrial, medical & military7,Systems Integration for Long Haul, Metro and Access Network

Specification	PC(Standard)
IL (Insertion Loss)	≤0.3dB
RL (Return Loss)	≥35dB
Operating Temperature	-40℃ to 75℃
Durability	≤0.1dBtypical change, 500matings
Available Wavelength	SM=1310&1550nm

Ordering Information:

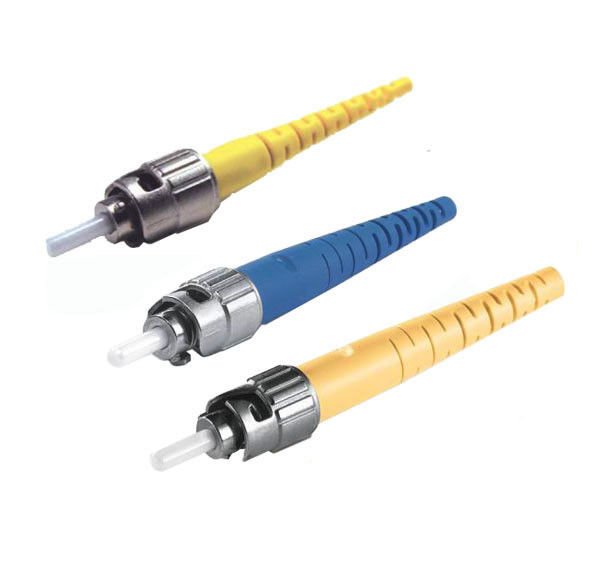

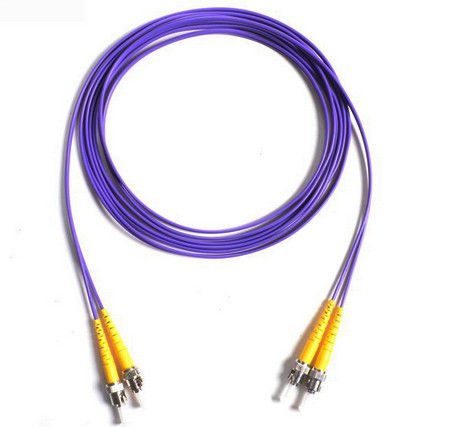

1. Connector type: FC, SC,   LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single mode(SM: 9/125um), Multimode(MM: 50/125um or 62.5/125um)
4. Core quantity: Simplex(SX), Duplex(DX)
5. Cable diameter: 0.9mm, 2.0mm, 3.0mm
6. Cable Length: 1M, 2M, 3M....
7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Armoured...
8. Color: Yellow, Orange, Green, Red, Blue.....



Tag:sc fiber patch cord,fiber patch cord,st patch cord
