Product Details:
Payment & Shipping Terms:
|
| Structure: | Simplex | Color: | Yellow |
|---|---|---|---|
| Length: | Can Be Customized | ||
| High Light: | sc fiber patch cord, st patch cord | ||

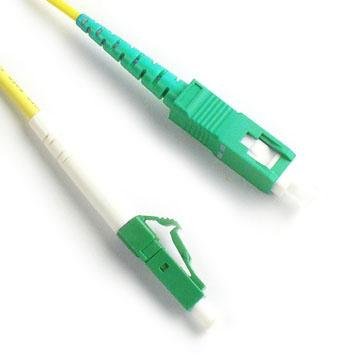

LC / APC - SC / APC - SM - SX-3.0mm-5m trs-Ofnp Optical Fiber Patch Cord Yellow Fiber Patch Cables
Technical Parameters:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
||||||||
Material:
Application:
Order information:
Tag:sc fiber patch cord,fiber patch cord,st patch cord
