Product Details:
Payment & Shipping Terms:
|
| Cable Material: | PVC,LSZH,OFNP | Structure: | Simplex |
|---|---|---|---|
| Color: | Yellow | Length: | Can Be Customized |
| High Light: | fiber patch cord, sc fiber patch cord | ||

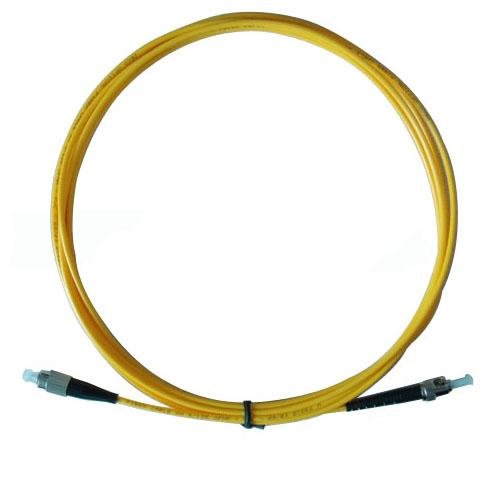

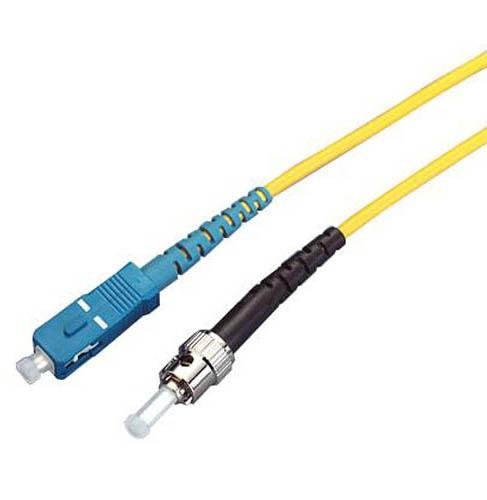

High Return Loss Fiber Optic Patch Cord Simplex SM 3.0mm Interchangeability
Features:
Application:
Material of patch cord:
Specification:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Order information:
Tag:sc fiber patch cord,fiber patch cord,st patch cord
