High return loss, low insterion loss and telcordia style boots FC APC Fiber Patch Cord

Detailed Product Description

Product Name:	Fiber Optic Patch Cord	Ferrule End-face:	PC, UPC, APC
Core:	Simplex, Duplex	Cable Diameter:	Ф3.0mm, Ф2.0mm, Ф0.9mm
Cable Length:	1, 2, 3 Meter Or Customized	Cable Type:	PVC, LSZH, OM3, OFNR, OFNP
High Light:	sc fiber patch cord, st patch cord

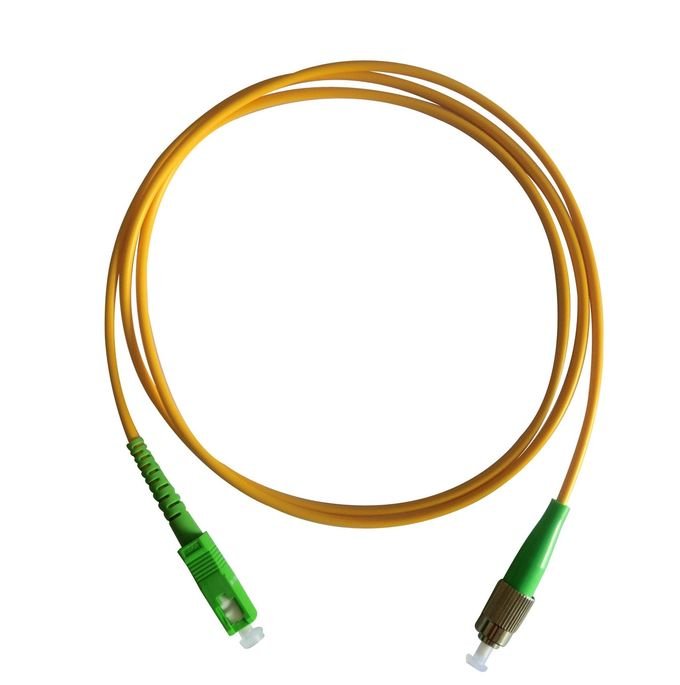

High return loss, low insterion loss and telcordia style boots FC APC Fiber Patch Cord

FC stands for Fixed Connector. FC Connectors are generally constructed with a metal housing and are nickel-plated.

Features:

High return loss
Low insterion loss
Telcordia style boots
Compiance with TIA/IEA, IEC, Rohs



Application:

1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen2.Video transmission , Data transmission3.Active Device Termination4.Premise Installations5.Telecommunication and Data processing Networks6.Industrial, medical & military7.Systems Integration for Long Haul, Metro and Access Network

Specification	APC(Standard)	APC(Standard)
IL (Insertion Loss)	≤0.3dB	≤0.2dB
RL (Return Loss)	≥60dB	≥65dB
Operating Temperature	-40℃ to 75℃
Durability	≤0.1dBtypical change, 500matings
Available Wavelength	SM=1310&1550nm

Ordering Information:

1. Connector type: FC, SC,   LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single mode(SM: 9/125um), Multimode(MM: 50/125um or 62.5/125um)
4. Core quantity: Simplex(SX), Duplex(DX)
5. Cable diameter: 0.9mm, 2.0mm, 3.0mm
6. Cable Length: 1M, 2M, 3M....
7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Armoured...
8. Color: Yellow, Orange, Green, Red, Blue.....
