Low insertion loss, high return loss ST / PC SM DX 2.0mm, Fiber Optic Patch Cord

Detailed Product Description

Product Name:	Fiber Optic Patch Cord	Ferrule End-face:	PC, UPC, APC
Core:	Simplex, Duplex	Cable Diameter:	Ф3.0mm, Ф2.0mm, Ф0.9mm
Cable Length:	1, 2, 3 Meter Or Customized	Cable Type:	PVC, LSZH, OM3, OFNR, OFNP
High Light:	fiber patch cord, sc fiber patch cord

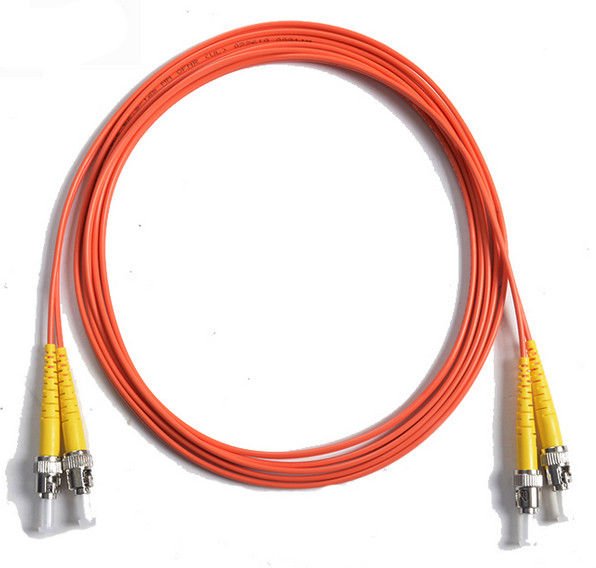

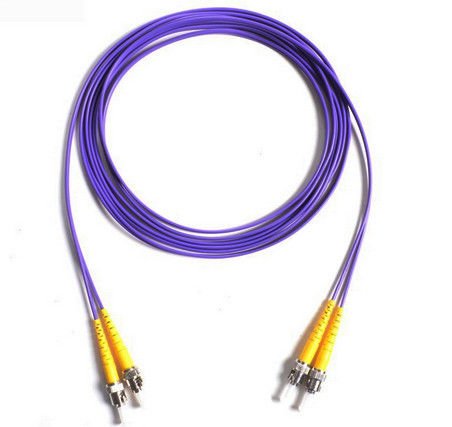

Low insertion loss, high return loss ST / PC SM DX 2.0mm, Fiber Optic Patch Cord

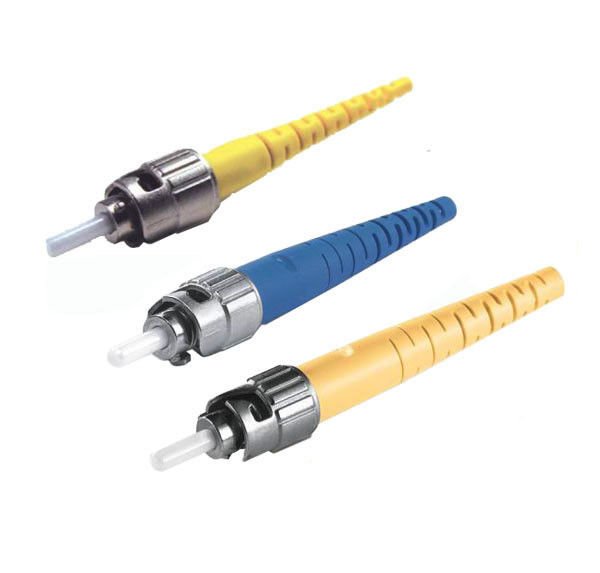

ST connector stands for Straight Tip- a quick release bayonet style connector. ST connectors are cylindrical with twist lock coupling. They are push-in and twist types.

Features:
Complying with IEC, YD-T826/1996, NTT, YD/T826&YD/T895&YD/T896 standard.
Low insertion loss, high return loss
Easy for operation
High credibility and stability
Good in repeatability and exchangeability

Specifications (compliant with Telcordia and IEC standard):
Types: single mode, multi mode
Insertion Loss (dB): ≤ 0.2 (UPC)
Return Loss (dB): ≥ 50 (SM/UPC) , 35(MM/UPC)
Exchangeability: ≤ 0.2 dB
Tensile Strength: ≤ 0.2 dB ( 0 to15 Kgf )
Temp. Range: (- 40 to +80 degree centigrade)
Geometric Specification of Fiber Optic Patch Cords Finished End-face (fiber optic patch cord that passed Geometric test is of super performance) :
Types: UPC Connector
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: ≤50 um, ≤100 um
Fiber Spherical Height: -90 nm , +50 nm





Parameter

Unit

FC, SC, LC

ST, MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

PC

APC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310, 1510

1310, 1510

1310, 1510

1310, 1510

Exchangeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

℃

-40~75

-40~75

-40~75

-40~75

Storage temperature

℃

-45~85

-45~85

-45~85

-45~85

Cable diameter

mm

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9





Application:





1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2,Video transmission , Data transmission
3,Active Device Termination
4,Premise Installations
5,Telecommunication and Data processing Networks
6, Industrial, medical & military
7,Systems Integration for Long Haul, Metro and Access Network
