| Structure: | Duplex | Cable Jacket: | OFNR |
|---|---|---|---|
| Color: | Yellow | Length: | Can Be Customized |
| High Light: | fiber patch cord, st patch cord | ||

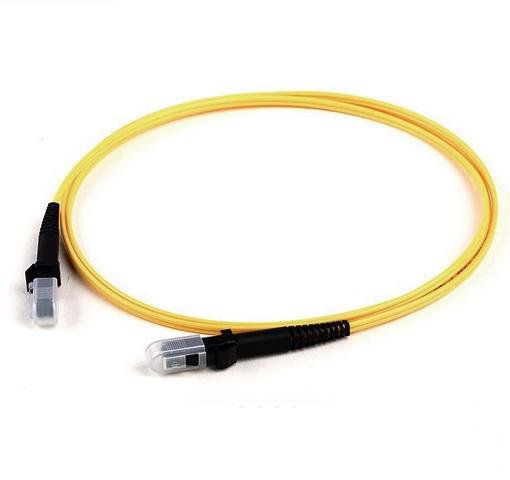

MTRJ singlemode Duplex 2.0mm OFNR corning Fiber optic patch cord,insertion loss:<=0.2dB
Application:
-Fiber-optic communication system
-Fiber-optic data transmission
-LAN, CATV
-Fiber-optic testing system
Specification:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
||||||||
Features:
-In-line with Telcordia GR-326-CORE standard
-Low insertion loss, high return loss, high reliability
-Good repeatability, interchangeability
-Any diameter of fiber can be chose, 0.9, 2, 3mm ,10g fiber, low smoke and zero halogen can be chosen
Raw materials:
-Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
-Inner frame: PBT, white (RoHS)
-Ferrule: zirconium oxide ceramic material, white (RoHS)
-Ferrule’s handle: copper (C3602), nickelage (RoHS)
-Mechanical spring: stainless steel (RoHS)
-Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
-Snap ring: aluminium alloy 6063 (RoHS)
-Ring: copper alloy (HPD62), nickelage (RoHS)
-Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
-Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNP
Order information:
