Product Details:
Payment & Shipping Terms:
|
| Cable Type: | OM3 | Cable Color: | Aqual |
|---|---|---|---|
| Diameter Of Cable: | 2.0mm | Length: | Can Be Customized |
| High Light: | sc fiber patch cord, st patch cord | ||

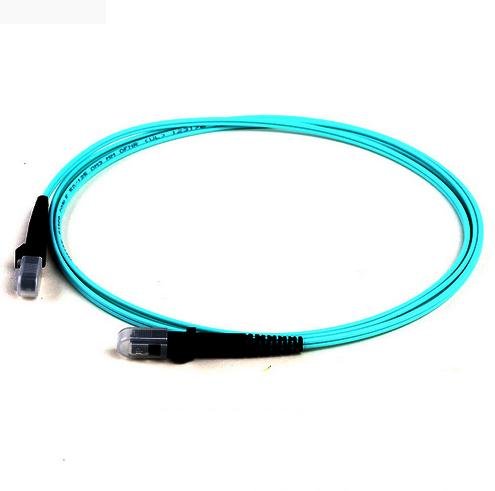

Original Factory of fiber optic patch cord,MTRJ to MTRJ OM3 50/125 Duplex 2.0mm LSZH
►Characteristics:
--Good durability
--Good exchangeability
--High temperature stability
--Low insertion loss and back reflection loss
--Superior Quality Standard PC/UPC/APC Polishing
--Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
►Technical Parameter:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
►Order information:
•Fiber cores: 1, 4, 8, 12, 16... cores
•Diameter:0.9, 2.0, 3.0mm
•Length:1m, 2m, 3m to 120m
•Fiber: SM/OM1/OM2/OM3/OM4
•Material of jacket: PVC/LSZH/OFNR
•Connector: FC, SC, ST, LC, MU, MTJR, MPO, E2000
Tag:sc fiber patch cord,fiber patch cord,st patch cord
