Product Details:
Payment & Shipping Terms:
|
| Cable Material: | LSZH / PVC | Connector: | SC / APC |
|---|---|---|---|
| Fiber Type: | G652D / G657A / G657B | Fiber Qty: | 1,2,4 Core |
| Cable Color: | Black / White | Cable Length: | 5M / 10M / 15M / Customized |
| Cable Structure: | Drop Cable | Application: | FTTH |
| High Light: | sc fiber patch cord, st patch cord | ||

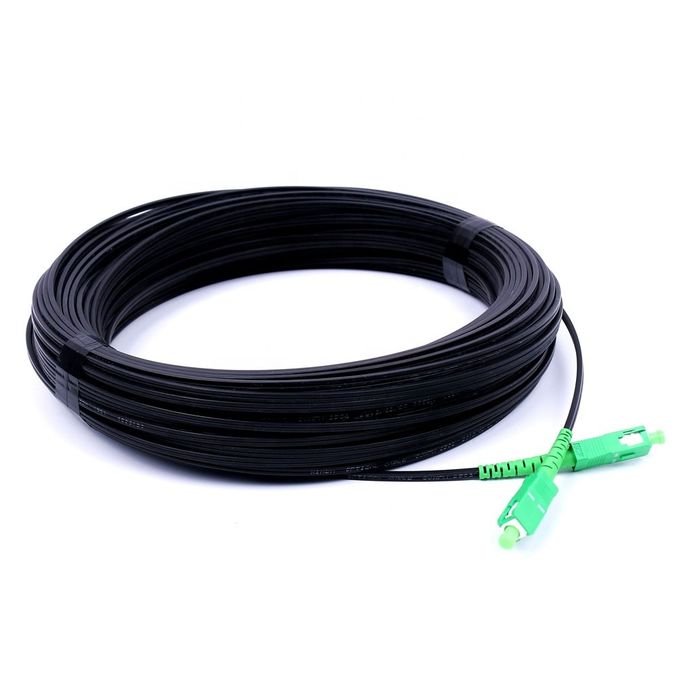

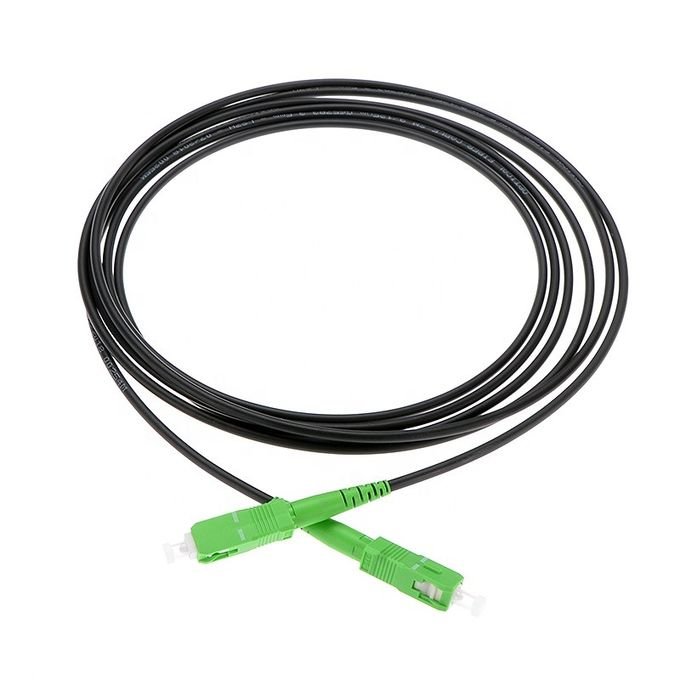

Singlemode PVC Fiber Optic Patch Cord SC / APC Simplex 3.0mm
Features:
SC/APC fiber optic cable
---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Application:
Technical specifications:
| Pigtail Connector | PC (SM) | UPC (SM) | APC (SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insertion Loss (dB) | ≤0.2 (max≤0.3) | |||
| Repeatability (dB) | ≤0.1 | |||
| Durability(1/Matings) | ≥500 | |||
| Operation Temperature (°C) | -25~+70 | |||
| Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | |||
| Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
| diameter | 0.9mm 2.0mm, 3.0mm etc | |||
| Cable material | PVC, LSZH | |||
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc | |||
Product packing details
| Products Packing | |
| Inner packing | 1piece per plastic bag |
| Min order | 100 pieces |
| 100 pieces weight | 2-3kg |
| Outer packing | Carton box |
Payment terms
| Payment terms |
| 1) Accepted small order,OEM,etc. |
| 2) Ordinary delivery time: 3-7 days, according to order quantity. |
| 3) Ready to shipping by sea ,DHL , Fedex, EMS, as soon as we receive payment |
| 4) Accept T/T 100% advance. Western Union, PayPal. |
| 5) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility |
Product packing details
| Products Packing | |
| Inner packing | 1piece per plastic bag |
| Min order | 100 pieces |
| 100 pieces weight | 2-3kg |
| Outer packing | Carton box |
