Product Details:
Payment & Shipping Terms:
|
| Cable Material: | LSZH / PVC | Connector: | SC / APC-SC/UPC |
|---|---|---|---|
| Fiber Type: | G652D / G657A / G657B | Fiber Qty: | Duplex |
| Cable Color: | Yellow / White / Blue / Customized | Cable Length: | 1M / 3M / 5M / Customized |
| High Light: | fiber patch cord, st patch cord | ||

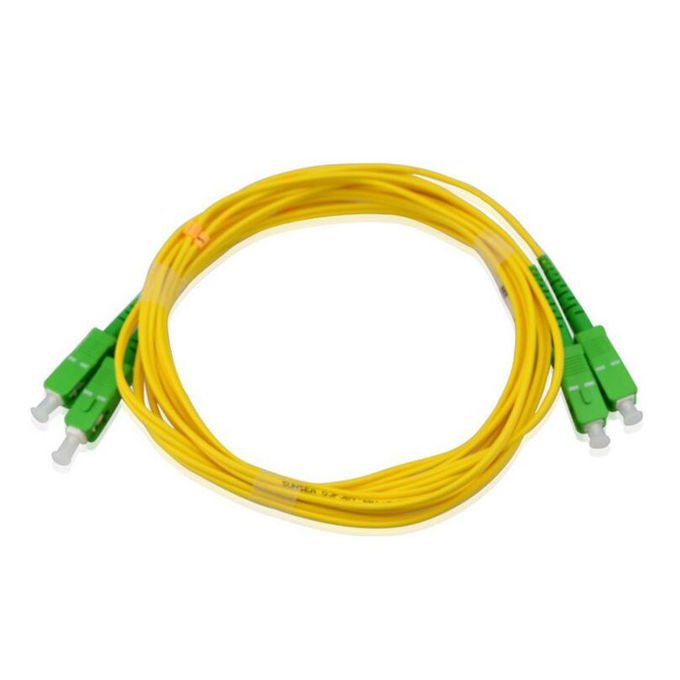

SM Duplex Fiber Optic Patch Cable , SC / APC Connector PVC Cable
Features
♦ In line with Telcordia GR-326-CORE standard
♦ Low insertion loss,high return loss,high reliability
♦ Good repeatability,interchangeability
♦ Any diameter of fiber can be chose ,0.9mm,2mm,3mm ,
10G fiber,Low Smoke and Zero Halogen can be chose.
Application
1. Local Area Networks (LANs) and Wide Area Networks (WANs)
2. Fiber Optic CATV, FTTH, FTTB, FTTP etc
3. Fiber Optic telecommunication systems
4. Transmission Mode (ATM)
5. Fiber Optic Backbone
6. Military Instrumentation
Ordering Information
For Example: FC/PC-FC/PC-SM-SX-φ3.0-3M
Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule End-face:PC,UPC,APC
Core Type: Single-mode(SM:9/125μm), Multimode(MM:50/125μm or 62.5/125μm)
Product Structure:“DX”means Duplex,“SX”means Simplex
Fiber Diameter: φ3.0mm,φ2.0mm,φ0.9mm
Cable Length:1,2,3meter or customized.
Cable Type:PVC,LSZH,OM3,OFN
Specification:
| Connector | SC,FC,LC,ST,MU,E2000,MTRJ | MPO/MTP | |||
| Polishing | SM/UPC | MM/PC | SM/APC | SM/PC | MM/PC |
| Insertion Loss(max) | ≤0.30dB | ≤0.30dB | ≤0.30dB | ≤0.75dB | ≤0.5dB |
| Return Loss(min) | ≥50 dB | ≥35 dB | ≥60 dB | ≥40dB | ≥20dB |
| Tensile Strength | <10kg | ||||
| Durability | <0.20 dB typical change, 500 matings | ||||
| Repeatability | ≤0.1dB | ||||
| Storage , Operating Temperature [°C] | -40~+85 | ||||
Tag:sc fiber patch cord,fiber patch cord,st patch cord
