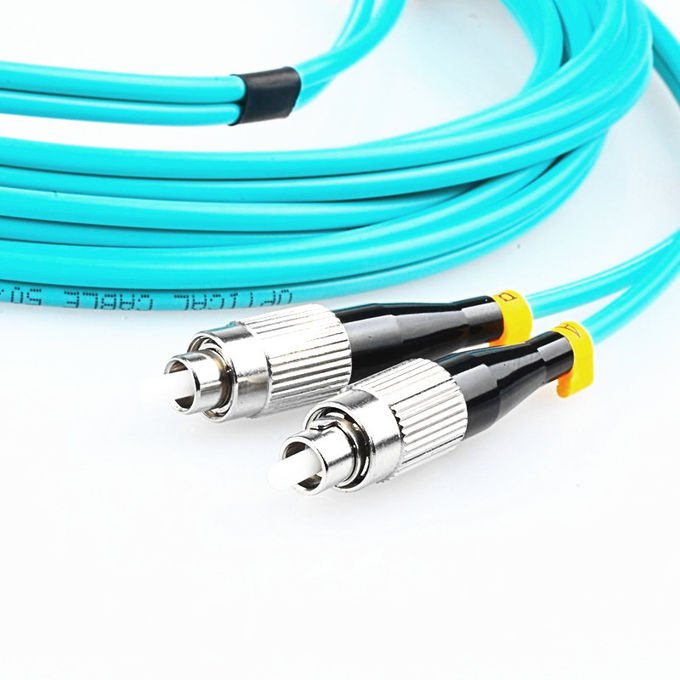

OM3 aqua duplex optical jumper FC/UPC corning fiber LSZH cable jacket

OM3 aqua duplex optical jumper FC/UPC corning fiber LSZH cable jacket

Large Image :  OM3 aqua duplex optical jumper FC/UPC corning fiber LSZH cable jacket

Product Details:

Place of Origin: Shenzhen , China
Certification: CE,RoHS,FCC,CPR,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price:
Packaging Details: PE bag
Delivery Time: 3-15 days
Payment Terms: L/C,T/T,Western Union payments for offline orders.
Supply Ability: 1 million connector / month
Contact Now
Detailed Product Description
Detailed Product Description
Structure: Duplex Cable Jacket: LSZH
Color: Aqua Length: Can Be Customized
High Light: fiber patch cord, st patch cord

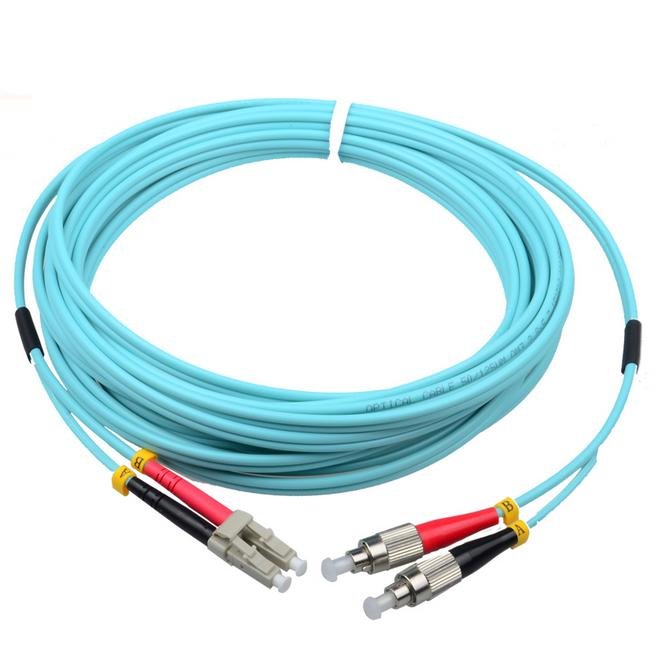

OM3 aqua duplex optical jumper,FC/UPC-LC/UPC, corning fiber,LSZH cable jacket

►Features:

  1. Low insertion loss, high return loss
  2. Small, light, high dense connection
  3. Standard exact plastic material
  4. High credibility and stability
  5. Good in repeatability and exchangeability

►Application:


  1. Gigabit Ethernet
  2. Active device termination
  3. Telecommunication networks
  4. Video
  5. Multimedia
  6. Premise installations
  7. Local area networks
  8. FTTH and FTTX applications
  9. CATV


► Material of patch cord:

  1. Dust caps: LDPE, transparent (RoHS)
  2. Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
  3. Inner frame: PBT, white (RoHS)
  4. Ferrule: Zirconium oxide ceramic material, white (RoHS)
  5. Ferrule’s handle: copper (C3602), nickelage (RoHS)
  6. Mechanical spring: stainless steel (RoHS)
  7. Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
  8. Snap ring: aluminium alloy 6063 (RoHS)
  9. Ring: copper alloy (HPD62), nickelage (RoHS)
  10. Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
  11. Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR and more


►Specification:


Item Unit FC,SC,LC ST,MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC UPC PC PC PC UPC PC PC UPC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310,1510 1310,1510 1310,1510 1310,1510
Exchengeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable Diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9




►Order information:

  1. Type: SX/DX optional
  2. Ferrule end face: APC/UPC/PC
  3. Diameter: 0.9, 2.0, 3.0mm
  4. Length:1m, 2m, 3m to 120m
  5. Fiber: SM/OM1/OM2/OM3/OM4
  6. Material of jacket: PVC/LSZH/OFNR





Tag:sc fiber patch cord,fiber patch cord,st patch cord
