Armored FC, SC, LC, ST, MTRJ fiber optic patch cord for optical communication system

Detailed Product Description

Product Name:	Fiber Optic Patch Cord	Ferrule End-face:	PC, UPC, APC
Core Type:	Single-mode , Multimode	Cable Diameter:	Ф3.0mm, Ф2.0mm, Ф0.9mm
Cable Length:	1, 2, 3 Meter Or Customized	Cable Type:	PVC, LSZH, OM3, OFNR, OFNP
High Light:	fiber patch cord, sc fiber patch cord

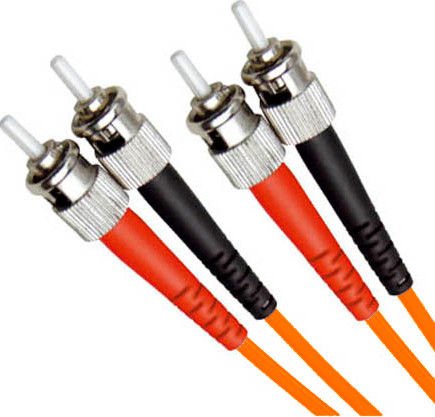

Armored FC, SC, LC, ST, MTRJ fiber optic patch cord for optical communication system

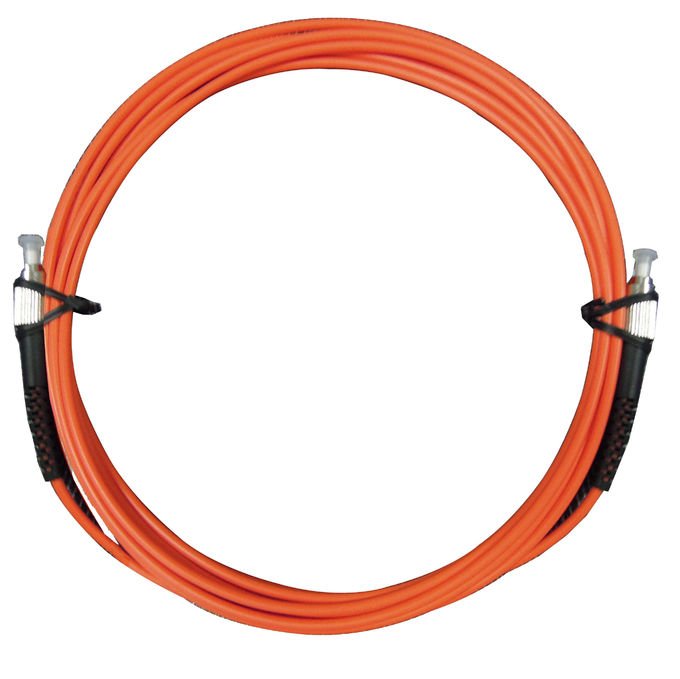

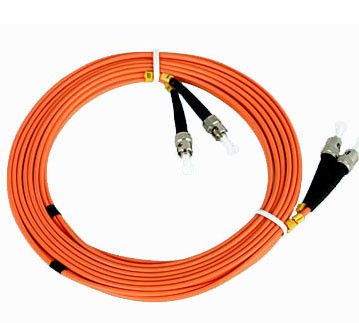

Armoured fiber patch cord
A patch cord is a fiber optic cable used to attach one device to another for signal routing.
Armoured fiber optic patch cords are with stainless steel tube inside the outer jacket to protect the central unit of the cable. They are strong and flexible, can be bend randomly without being broken.



Features:
Steel tape armored inside outer jacket
Resist damage by improper twist
Resistance of pressure and rodent bite
Different fiber optic connector types optional
Low insertion loss
Custom cable lengths optional





Application:

1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen2.Video transmission , Data transmission3.Active Device Termination4.Premise Installations5.Telecommunication and Data processing Networks6.Industrial, medical & military7.Systems Integration for Long Haul, Metro and Access Network



Specification:

Parameter

Unit

FC, SC, LC

ST, MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

PC

APC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310, 1510

1310, 1510

1310, 1510

1310, 1510

Exchangeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

℃

-40~75

-40~75

-40~75

-40~75

Storage temperature

℃

-45~85

-45~85

-45~85

-45~85

Cable diameter

mm

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9



Ordering Information:
FC/ UPC–FC/ UPC-SM- DX-Φ3.0–2M
①  ②       ①  ②    ③   ④   ⑤    ⑥
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥Cable Length: 1, 2, 3 meter or customized
⑦Cable type: PVC, LSZH, OM3, OFNR, OFNP
