3.0mm cable diameter PVC D4 fiber patch cord for Telecommunication

Detailed Product Description

Product Name:	Fiber Optic Patch Cord	Ferrule End-face:	PC, UPC, APC
Core Type:	Single-mode , Multimode	Cable Diameter:	Ф3.0mm, Ф2.0mm, Ф0.9mm
Cable Length:	1, 2, 3 Meter Or Customized	Cable Type:	PVC, LSZH, OM3, OFNR, OFNP
High Light:	fiber patch cord, st patch cord



3.0mm cable diameter PVC D4 fiber patch cord for Telecommunication

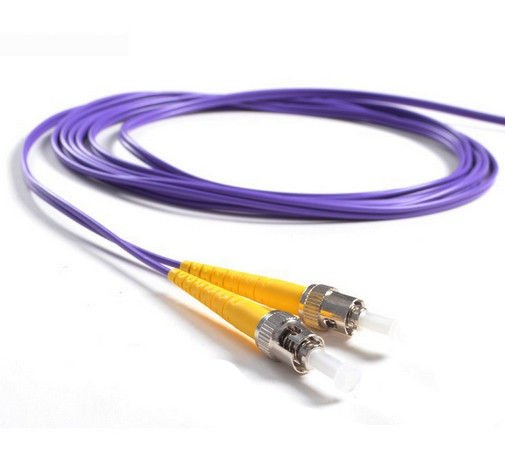

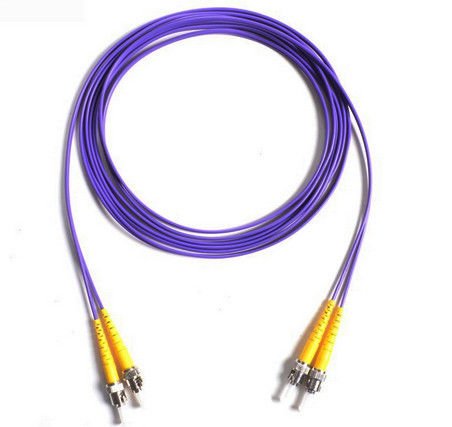

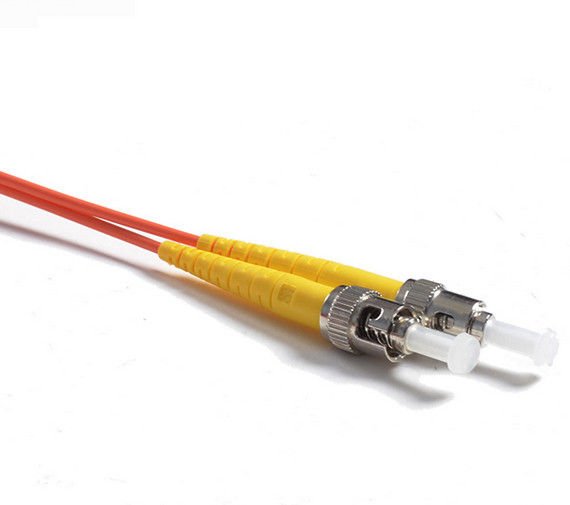

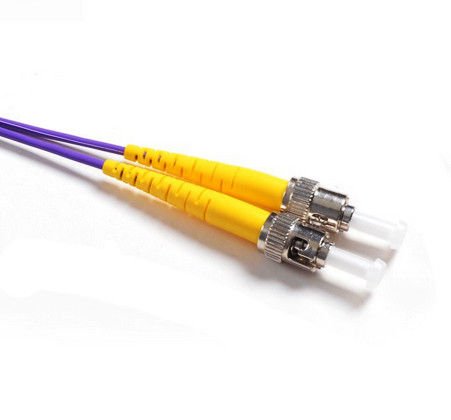

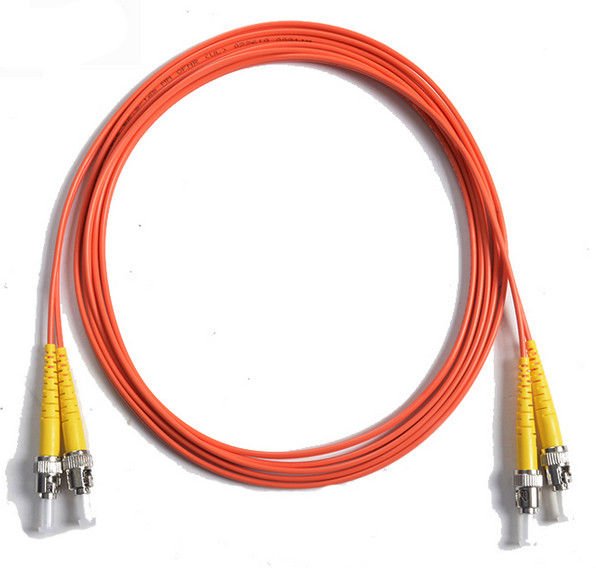

D4 fiber patch cord
A patch cord is a fiber optic cable used to attach one device to another for signal routing.



Features:
Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability





Application:

1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen2.Video transmission , Data transmission3.Active Device Termination4.Premise Installations5.Telecommunication and Data processing Networks6.Industrial, medical & military7.Systems Integration for Long Haul, Metro and Access Network



Ordering Information:
D4/ PC–D4/ PC/-SM-SX-3.0–2M
①  ②     ①  ②    ③  ④   ⑤      ⑥
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum





Parameter

Unit

FC, SC, LC

ST, MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

PC

APC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310, 1510

1310, 1510

1310, 1510

1310, 1510

Exchangeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

℃

-40~75

-40~75

-40~75

-40~75

Storage temperature

℃

-45~85

-45~85

-45~85

-45~85

Cable diameter

mm

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9



Ordering Information:
FC/ UPC–FC/ UPC-SM- DX-Φ3.0–2M
① ② ① ② ③ ④ ⑤ ⑥
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥Cable Length: 1, 2, 3 meter or customized
⑦Cable type: PVC, LSZH, OM3, OFNR, OFNP
