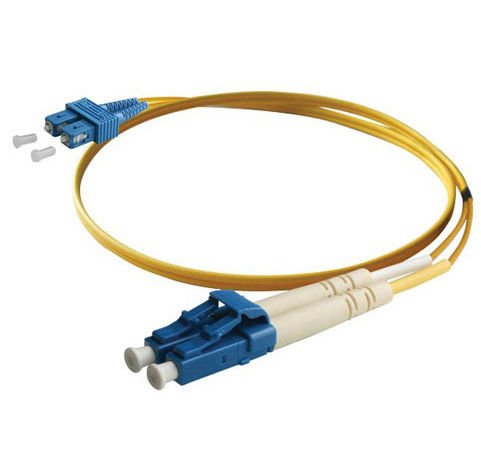

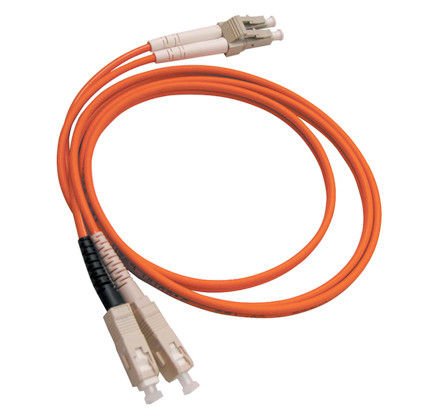

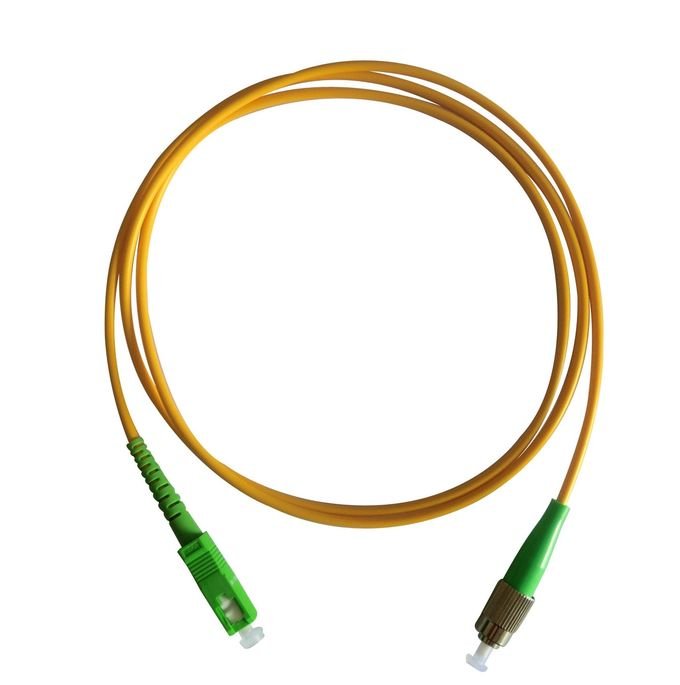

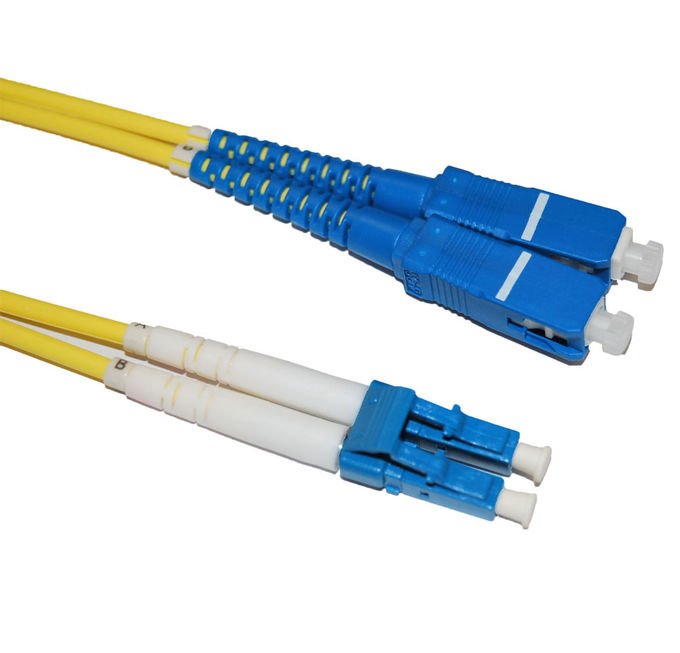

LSZH orange cable LC MM Fiber Optic Patch Cord, SM PC≥ 50dB Return Loss

Detailed Product Description

Product Name:	Fiber Optic Patch Cord	Ferrule End-face:	PC, UPC, APC
Core:	Simplex, Duplex	Cable Diameter:	Ф3.0mm, Ф2.0mm, Ф0.9mm
Cable Length:	1, 2, 3 Meter Or Customized	Cable Type:	PVC, LSZH, OM3, OFNR, OFNP
High Light:	fiber patch cord, sc fiber patch cord



LC MM Fiber Optic Patch Cord, SM PC≥ 50dB Return Loss

Fiber Optic Patch Cord
1.High tensile strength, flexible
2.High precision of ceramic ferrule
3.High quality polished 100%test

Fiber Optic Patch Cord

1.FC SC LC ST MTRJ SMA E2000 D4 MPO/MTP

2.Singlemode & Multimode(SM/MM)

3.PC & APC

4.Length(Optional)





Technical Standard:
*  Insertion Loss: PC≤ 0.2dB, UPC≤ 0.2dB, APC≤ 0.1dB; Typical0.1dB;
*  Return Loss: SM PC≥ 50dB, UPC≥ 50dB, APC≥ 65dB; MM PC≥ 45dB, UPC≥ 45dB
*  Interchangeability: ≤ 0.2dB
*  Salt Spray: ≤ 0.2dB
*  Repeatability: (1000 times) ≤ 0.1dB
*  Vibration: (550Hz 1.5mm) ≤ 0.1dB
*  High Temperature: ( +85 sustain 100 hours) ≤ 0.2dB
*  Low Temperature: (-40 sustain 100 hours) ≤ 0.2dB
*  Temperature Circularly: (-40+85 sustain 100 hours) ≤ 0.2dB
*  Humidity: (+25+65 93 R. H. 100 hours) ≤ 0.2dB
*  Apex Offset: 0μm≤ ≤ 50μm
*  Radius of Curvature: 7mm≤ ≤ 25mm
*  Cable TypeSimplex, Duplex, Fan-Out;

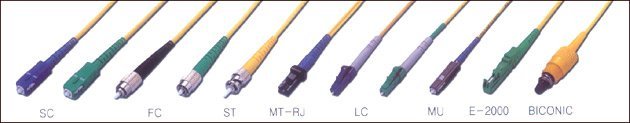

*  Connector Type: FC, SC, ST, LC, E2000, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc.
*  Fiber Mode: SM (single mode) G652D, G655, G657, MM (multimode); G651.1 (50/125, 62.5/125, 10GB/s 50/125)



Parameters	Test Condition	Value (dB)
		Multimode	Singlemode
Insertion Loss	0.85/1.3um or 1.31/1.55um	≤0.3	≤0.3
Return Loss	0.85/1.3um or 1.31/1.55um	≥35	≥50 (APC≥60)
Interchangeability	Connect Randomly	＜0.2	＜0.2
Vibration	5~50Hz, 1.5mm Amplitude	＜0.1	＜0.1
Tensile Strength	0~15Kgf (0.9mm Exception)	＜0.1	＜0.1
High Temperature	+85℃, During 100 Hours	＜0.2	＜0.2
Low Temperature	-40℃, During 100 Hours	＜0.2	＜0.2
Temperature Cycle	-40℃～+85℃, during 5 Cycles	＜0.2	＜0.2
Humidity	+25℃～+65℃, 93%R.H, 100 hours	＜0.2	＜0.2































Application:

1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen2.Video transmission , Data transmission3.Active Device Termination4.Premise Installations5.Telecommunication and Data processing Networks6.Industrial, medical & military7.Systems Integration for Long Haul, Metro and Access Network





Tag:sc fiber patch cord,fiber patch cord,st patch cord
