| Cable Color: | Yellow | Connector Type: | FC,SC,ST,LC Optional |
|---|---|---|---|
| Fiber Type: | SM G652D | ||
| High Light: | fiber optics cable connectors, fiber optic fc connector | ||

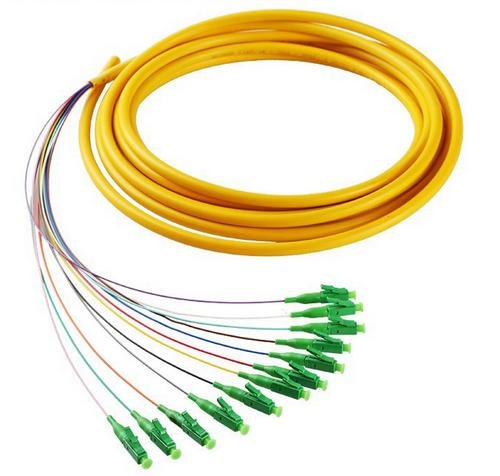

12 cores singlemode G652D bundle fiber optic pigtail,yellow cable,0.9mm inner cable
Buddle multi-fiber pigtail
Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.
Features:
4, 6, 8, 12, 24, 48 fibers optional
With a fan out kit at the junction of fibers
The fiber is flat type.
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ2.0mm, Φ3.0mm
Application:
1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen2,Video transmission , Data transmission3,Active Device Termination4,Premise Installations5,Telecommunication and Data processing Networks6, Industrial, medical & military7,Systems Integration for Long Haul, Metro and Access Network
Specification:
|
Parameter |
Unit |
Ribbon multi-fiber connector |
||
|
SM |
||||
|
PC |
UPC |
APC |
||
|
Insertion loss (typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
|
Operating wavelength |
nm |
1310, 1510 |
||
|
Exchangeability |
dB |
≤0.2 |
||
|
Vibration |
dB |
≤0.2 |
||
|
Operating temperature |
℃ |
-40~75 |
||
|
Storage temperature |
℃ |
-45~85 |
||
|
Cord diameter |
mm |
φ3.0, φ2.0, φ0.9 |
||
|
Fiber count |
F |
4, 6, 8, 12, 24, … fibers |
||
|
Applicable connector |
|
FC, SC, ST, MU, LC |
||
