| Structure: | Plug In Type | Connector: | 1 X 8 |
|---|---|---|---|
| Material: | PVC / ABS | Brand Name: | OEM |
| High Light: | optical communication devices, fiber optic equipments | ||

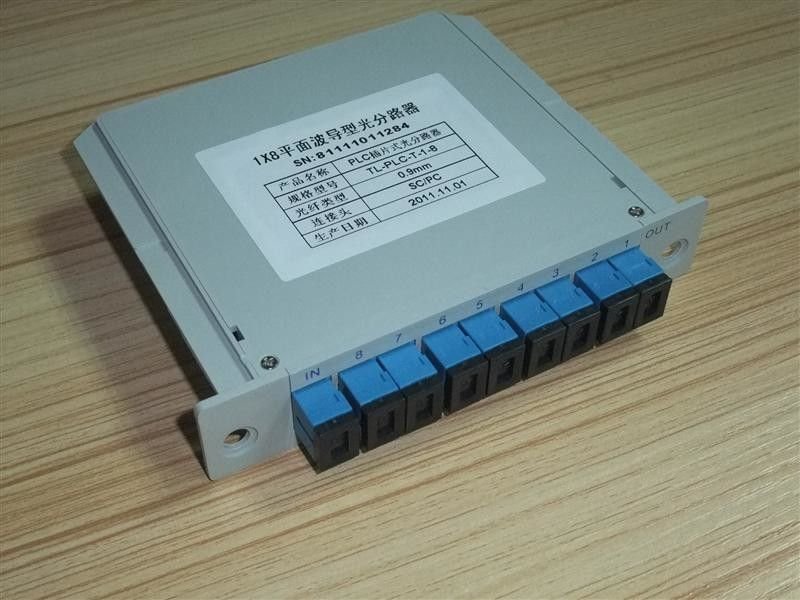

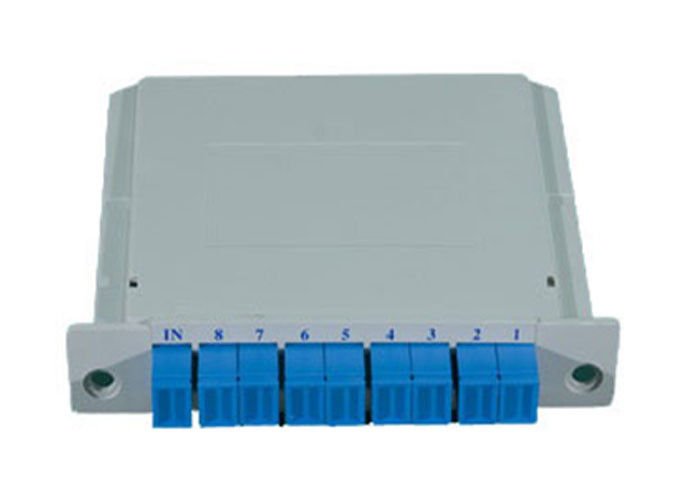

Good quality prices PLC Plug in type Fiber Optic Splitter for CATV and FTTH
Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.
Features:
Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available
Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting
Specification:
|
Parameter |
Configuration |
|||
|
N x 4(N=1, 2, 16) |
N x 8 (N=1, 2, 8) |
N x 16 (N=1, 2, 16) |
N x 32 (N=1, 2, 32) |
|
|
Operate Wavelength(nm) |
1310/1550, or customized |
|||
|
Bandwidth(nm) |
±20 |
|||
|
Max.Excess Loss(dB) |
0.2 |
0.3 |
0.4 |
0.5 |
|
Typ.Insertion Loss(dB) |
6.2 |
9.3 |
12.4 |
15.5 |
|
Max.Insertion Loss(dB) |
6.8 |
10.2 |
13.6 |
17 |
|
Uniformity(dB) |
1.2 |
1.8 |
2.4 |
3 |
|
PDL(dB) |
0.08 |
0.12 |
0.16 |
0.2 |
|
Thermal Stability(dB) |
0.2 |
0.3 |
0.4 |
0.5 |
|
Directivity(dB) |
≥60 |
|||
|
Operate Temperature(℃) |
-20～+70 |
|||
|
Lead Length(m) |
1 or customized |
|||
|
Lead Type(mm) |
φ3.0, φ2.0, φ0.9 |
|||
|
Package Dimension |
A:φ3.0, L=50 |
B:89*19*8 |
C:99*79*9 |
D:140*114*18 |
|
(mm, L*W*H) |
||||
Tag:optical communication devices,fiber optic splitter,fiber optic equipments
