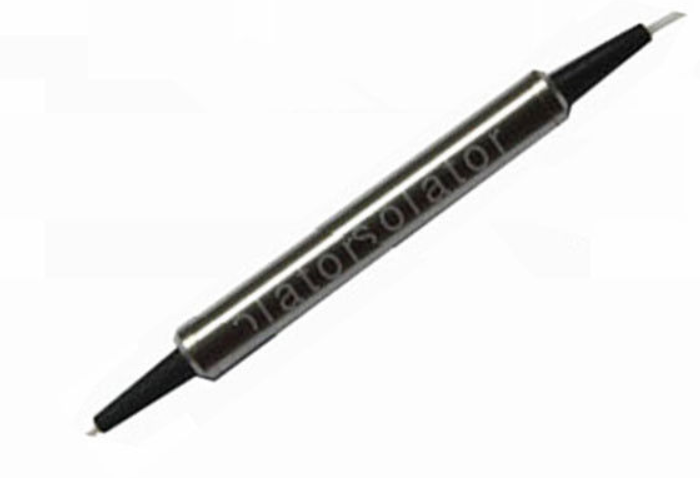

High Isolation 1550nm Fiber Isolator Single And Dual Stage Optical Isolators 1550 Sigle/Dual Stage Isolator
Optical isolators can block backflection and backscattering in the reverse direction at any polarization sate. It have low polarization mode dispersion(PMD),Polarization Dependent(PDL),Loss High Isolation . Features :
• High Isolation
• Low Insertion Loss
• Epoxy free on optical path• High Return Loss
• Polarization Dependent Loss
Order Information
| Isolation Type | Operating Wavelength | Grade | Fiber Type | Optical Length | In/Out Connector |
|
Single Stage Isolation
Dual Stage Isolation
|
15=1550nm |
P=Grade P A=Grade A |
1=Bare Fiber 2=900um Loose tube |
1=1.0m 2=1.5m C=Customer Length |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC |
Applications :
• Optical Fiber Amplifier
• CATV Fiberoptic Link
• Fiberoptic LAN Systems
• Telecommunications
• Fiberoptic System Testing
Specification
| Operating Wavelength (nm) | 1550±15 | |
| Type | Single Stage | Dual Stage |
| Grade | Grade P | |
| Typical Peak Isolation (dB) | ≥42 | ≥58 |
| Isolation (dB) | ≥32 | ≥46 |
| Typical Insertion Loss(dB) | 0.3 | 0.5 |
| Insertion Loss(dB) | ≤0.5 | ≤0.7 |
| Return Loss(dB) | ≥60/55 | |
| PDL (dB) | < 0.05 | |
| PMD (ps) | 0.2(0.05 available upon request) | |
| Operating Temperature (℃) | -20 ～ + 70 | |
| Storage Temperature (℃) | -40 ～ +85 | |
| Optical Type | Corning SMF-28 | |
| Optical Length (Min.) | 1 Meter Each End | |
| Max. Operating Power (mW) | 500 | |
| Package Size (mm) | Corning SMF-28 | |
Above specification are for device without connector.
