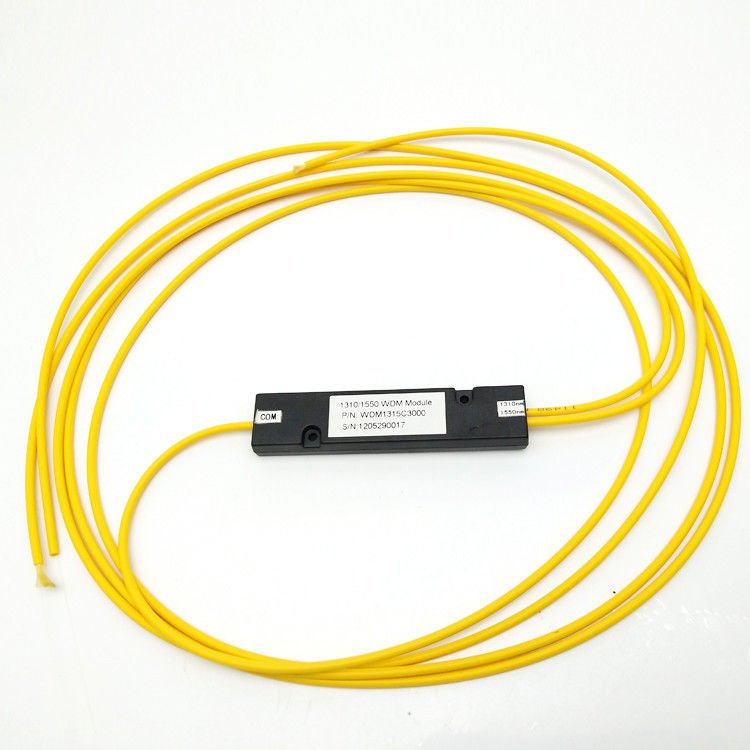

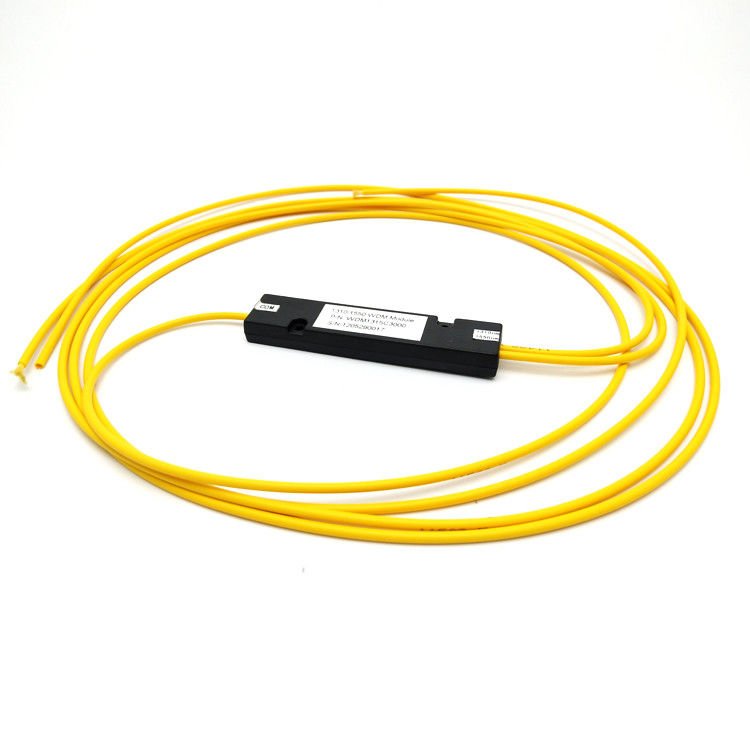

FWDM 1310nm 1490nm 1550nm optical filter
1. Description:
Three-port WDM specifically refers to three specific wavelength division multiplexing devices. In fiber-optic communications network, using three-port WDM can achieve two-way transmission of voice, video, data, the three most common wavelengths of WDM are 1310&1490 & 1550nm. Three-port WDM filters use principle of mutual collimator after binding the package, you can customize any of three wavelengths. Such devices generally require 24 hours of high temperature cycling and drop test to ensure products’ stability and reliability.
2.Features:
•Wide Wavelength Range
•Low Insertion Loss
•High Channel Isolation
•High stability and reliability
3.Application:
•System Monitoring
•WDM system
•Transmitters and Fiber
•Fiber optical amplifier
•Fiber optic lnstruments
4.Specification :
| Parameter | FWDM 4/35 | FWDM 5/34 | FWDM 34/5 | |
| Pass Band Wavelength Range (nm) | 1480~1500 | 1540~1560 | 1260~1360 & 1480~1500 | |
| Reflection Band1 Wavelength Range (nm) | 1260 ~ 1360 | 1260 ~ 1360 | 1540~1560 | |
| Reflection Band2 Wavelength Range (nm) | 1540~1560 | 1480~1500 | ||
| Insertion Loss (dB) | Reflect Channel | ≤0.6 | ||
| Pass Channel | ≤0.8 | |||
| Channel Ripple (dB) | <0.3 | |||
| Isolation(dB) | Reflect Channel | > 15 | ||
| Pass Channel | >30 | |||
| Insertion Loss Temperature Sensitivity (dB/℃) | <0.005 | |||
| Polarization Dependent Loss (dB) | <0.1 | |||
| Polarization Mode Dispersion (ps) | <0.1 | |||
| Directivity (dB) | >50 | |||
| Return Loss (dB) | >50 | |||
| Maximum Power Handling (mW) | 500 | |||
| Operating Temperature (℃) | 0 ~+70 | |||
| Storage Temperature (℃) | -40 ~+85 | |||
| Package Dimension (mm) |
1. Φ5.5 x L38(for 900um Loose tube or bare fiber )) 2. L90xW20xH9.5(for 2.0 mm or 3.0mm Cable) |
|||
5.Order information:
| Product | Wavelength | Pigtail Type | Fiber length | Connector |
| FWDM |
4/35=1490pass/1310&1550reflect 5/34=1550pass/1310&1490reflect 34/5=1310&1490pass/1550reflect |
0=250um 1=900um
2=2.0mm |
1=1m 2=1.5m 3=others |
0=None 5=others |
