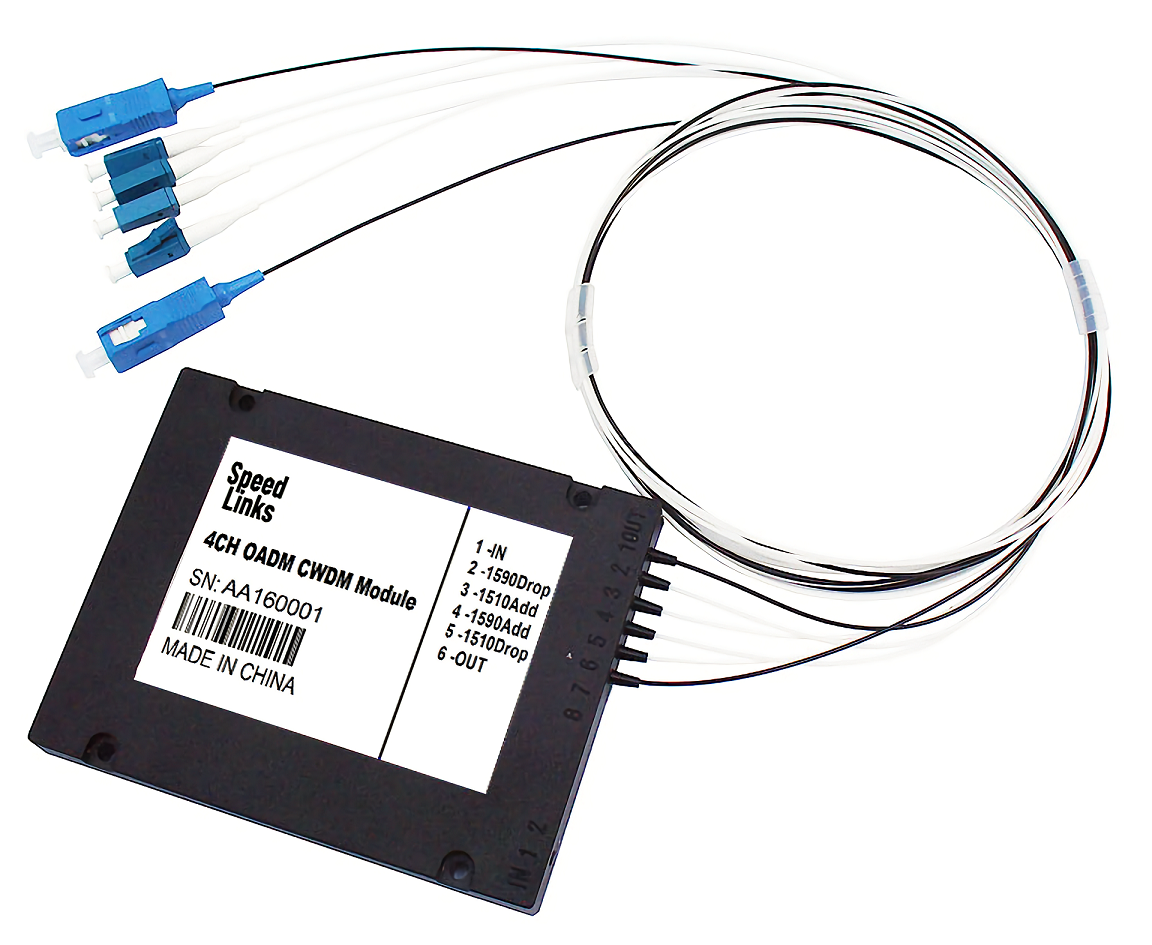

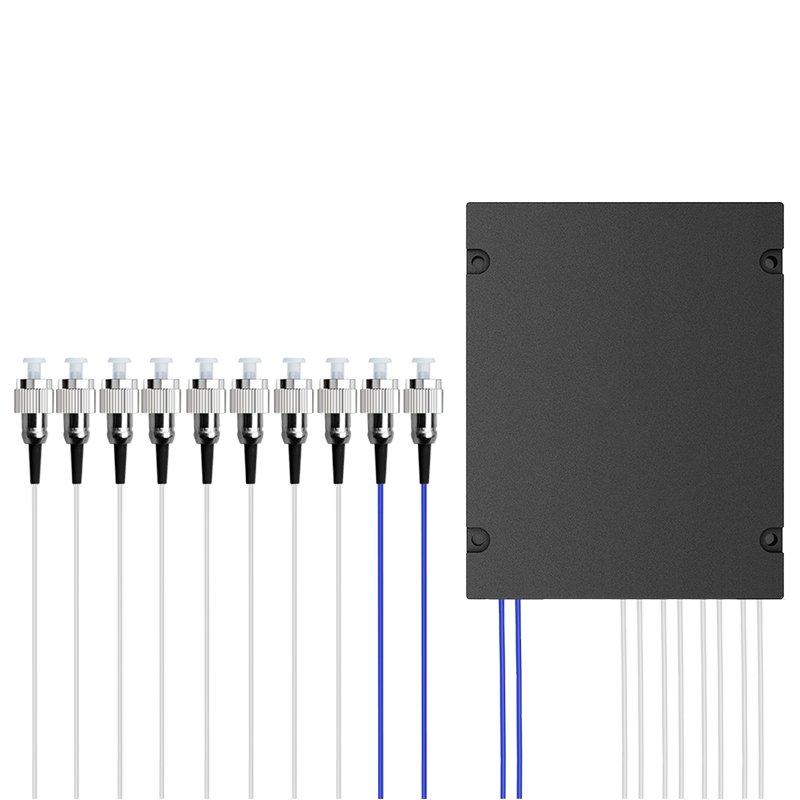

4 Channels CWDM OADM Dual Fiber East and/or West LGX BOX
Product Details
|
Operating Wavelength |
4 Channels 1270-1610nm |
Channel Space |
20nm |
|
Passband |
ITU±6.5nm |
Insertion Loss |
≤1.4dB |
|
Directivity |
≥50dB |
Return Loss |
≥45dB |
|
Transmission Direction |
West and/or east |
Fiber Type |
SMF-28e or Customer Specified |
|
Adjacent Channel Isolation |
≥30dB |
Non-adjacent Channel Isolation |
≥40dB |
|
Polarization Dependent Loss |
≤0.2dB |
Polarization Mode Dispersion |
≤0.1ps |
|
Maximum Optical Power |
300mW |
Dimensions (HxWxD) |
10x80x100mm |
|
Operating Temperature |
-20°C～+70°C |
Storage Temperature |
-40°C～+85°C |
Quality Assurance
Excellent quality is the foundation of SPEED LINKS' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Rigorous Industrial Product Testing
Optical communication products belong to industrial products,which require high stability and reliability.SPEED LINKS adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably.
