Features
Low Insertion Loss
High Isolation
Low PDL
Small package size，saving space
Wide Operating Wavelength
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability
CWDM System
PON Networks
CATV Links
Specifications

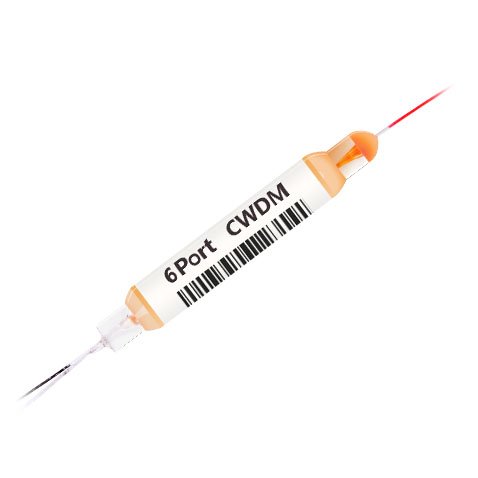

| Parameter | 6Port CWDM | ||||||
| Operating Wavelength（nm） | 1260~1620 or 1460~1620 | ||||||
| Transmission band（nm） | ±7.5/±7.0/±6.5 | ||||||
| Reflection band and Insertion Loss（dB） | ≤0.6 | ||||||
| Reflection band insertion loss（dB） | ≤0.4 | ||||||
| Channel Ripple（dB） | <0.3 | ||||||
| Isolation（dB） | Adjacent | >30 | |||||
| Non-adjacent | >45 | ||||||
| Reflection isolation（dB） | >15 | ||||||
| Directivity（dB） | ≥50 | ||||||
| Return Loss（dB） | ≥45 | ||||||
| Ripple（dB） | ≤0.3 | ||||||
| Opterating Temperature(℃) | -40~+85 | ||||||
| Storage Temperature (℃) | -40~+85 | ||||||
| Package dimension(mm) | A:Φ5.5×L38 | B:Customized | |||||
